High Pressure Water Jetting Tank Cleaning System 170L/Min
For Underground & Transport Tank Internal Cleaning
Product Overview:

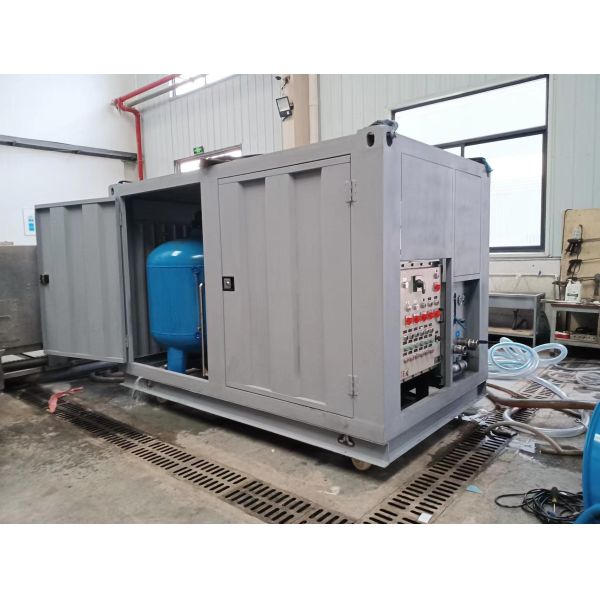

This advanced High Pressure Water Jetting Tank Cleaning System is specifically engineered for the internal cleaning of transport tanks, underground oil tanks, and industrial storage vessels. With a flow rate of 170L/min and working pressure of 50 bar, this system ensures efficient, thorough, and automated removal of residues such as oil sludge, fuel sediments, and chemical build-ups. It is driven by a 15kW electric motor and integrates a comprehensive set of components designed for professional industrial cleaning applications.
Key Components and Features:
✔ High Pressure Pump Unit
Powered by a 15kW electric motor, the high pressure pump delivers a stable 50 bar output pressure at 170L/min, suitable for low- to mid-pressure applications including oil-based sediment removal.
✔ 3D Rotating Nozzle System

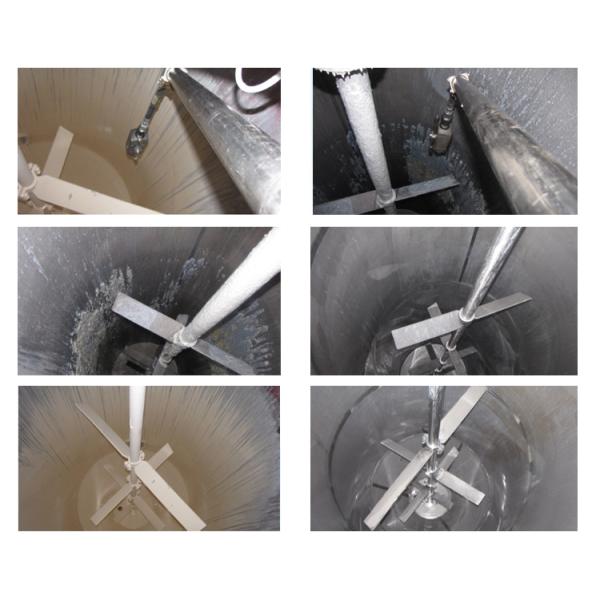

A patented 3D rotary cleaning head provides full 360° interior coverage, delivering powerful, high-impact jets to break down tough residues and ensure no dead zones remain inside the tank.
✔ Oil Suction Pump and Vacuum Unit
An integrated oil suction system and vacuum pump with vacuum tank ensure immediate removal of loosened sludge, wastewater, and other contaminants from the tank during and after the cleaning process.
✔ Oil-Water Separator Unit
This system includes an oil-water separation module, which helps to efficiently isolate waste oil from water during cleaning, making disposal more environmentally compliant and reducing post-cleaning treatment costs.
✔ Fully Integrated Design
All components are designed to work in synergy, allowing for continuous operation, minimal downtime, and enhanced safety during confined space cleaning jobs.
Applications:
-
Underground storage tank cleaning
-
Oil transport tank internal cleaning
-
Fuel tanker interior maintenance
-
Industrial chemical tank cleaning
-
Petrochemical plant tank cleaning
-
Marine barge and vessel tank sludge removal
